    • Multi Probe ultrasonic homogenizer
    • DH16S-3000
    • Power 3000W, crushing capacity 10-150ml per 16 samples.
    • DH16S-3000
    • Multi Probe ultrasonic homogenizer
    • Power 3000W, crushing capacity 10-150ml per 16 samples.

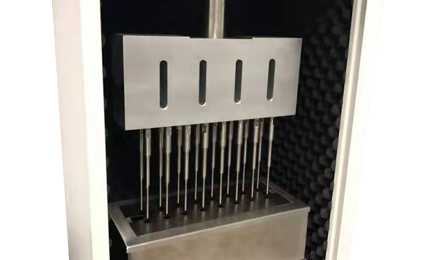

    DH16S-3000 Multi Probe ultrasonic homogenizer with a variable amplitude probe, capable of simultaneously processing 16 samples, ensuring sample homogeneity and greatly improving experimental efficiency.
    Product Introduction
    DH16S-3000 Multi Probe ultrasonic homogenizer with a variable amplitude probe, capable of simultaneously processing 16 samples, ensuring sample homogeneity and greatly improving experimental efficiency.


    Product Features
    ◆Used for crushing animal and plant cells, bacteria, spores, or tissue, extracting proteins from cells, and conducting scientific culture experiments of viruses and vaccines.
    ◆Accelerates the reaction rate of chemical, physical, and other processes, and speeds up liquid dehydration.
    ◆Used for scientific research analysis of crude oil dilution, oil-water emulsification, accelerating decrystallization, glass homogenization, and more.
    ◆Disperses rare earths, various inorganic minerals, and prepares homogenized mixtures of latex particles close to nanometer scale.
    ◆Used for quickly and powerfully cleaning fluids from mold micropores and blind holes with high precision.


    Experimental Objectives
    1. Understand the basic principles of ultrasonic cell disruption.
    2. Master the basic techniques of ultrasonic cell disruption.


    Experimental Principle
    When strong sound waves act on a solution, the phenomenon of bubble generation, growth, and rupture is related to cavitation. The shock waves and shear forces caused by cavitation cause cell lysis.


    Materials and Reagents
    10 mL bacteria, beaker, ice shavings, 75% alcohol cotton ball.


    Technical parameters
    Model: DH16S-3000
    Frequency: 20-25KHz automatic tracking
    Power: 3000W
    Random amplitude rod: Φ6*16 supports
    Optional amplitude rod: Φ3*16 supports
    Crushing capacity: 10-150ml*16 samples
    Temperature alarm range: 0-100℃
    Protection function: Over-temperature, over-power, over-time
    Duty cycle: 1-99%
    Power supply: 220/110V 50Hz/60Hz
    Power supply chassis size: 400×280×220mm
    Net weight: 12.1kg
    Main machine + transducer weight: 22kg
    Outer packaging size: 534×295×435mm


    Probe Model Selection
    Model Cell Disruption Capacity
    Φ2mm 150ul-5ml
    Φ3mm 200ul-10ml
    Φ6mm 10ml-150ml


    Single Page - Color Page
    Name: Author: Action:
    Multi Probe ultrasonic homogenizer DH16S-3000 ultrasonic homogenizer Download


    Related products
    Name: Model:
    Multi Probe ultrasonic homogenizer DH16S-3000
    Multiple Probe Sonicator DH8S-2000
    Multi-Element Probes Ultrasonic Processor DH4S-1000
    Product List
    DH16S-3000 Unit
    Host Machine Unit
    Vibration System (Transducer Assembly) Set
    Special Wrench (used for disassembling the amplitu Set
    Fuses piece
    Power cord piece
    User manual copy
    Warranty card copy
    Certificate of qualification copy
    Description
    1
    1
    1
    8A, 5A each 2
    1
    1
    1
    1
