    • Multi-Element Probes Ultrasonic Processor
    • DH4S-1000
    • Power: 1000W, crushing capacity: 10-150ml * 4 samples.
    • DH4S-1000
    • Multi-Element Probes Ultrasonic Processor
    • Power: 1000W, crushing capacity: 10-150ml * 4 samples.
    Four-channel Ultrasonic Processor, DH4S-1000 innovative custom 4-channel amplitude probe, can process 4 samples simultaneously, ensuring sample uniformity and greatly improving experimental efficiency.
    Product Introduction

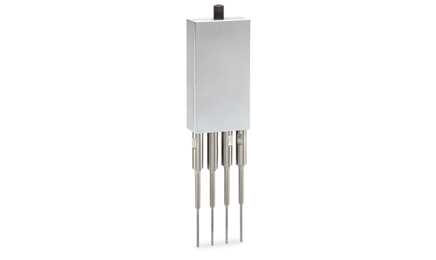

    DH4S-1000 is a four-channel Multi-Element Probes Ultrasonic Processor with an innovative customized 4-channel amplitude probe, capable of processing 4 samples simultaneously. This instrument ensures sample uniformity and significantly improves experimental efficiency. By utilizing the cavitation effect of strong ultrasound in liquids, this multifunctional and versatile instrument can be used for the disruption of various animal and plant cells as well as viral cells. It can also be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions, among other applications. It is widely used in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, and zoology.


    Product Features
    ◆Used for crushing animal and plant cells, bacteria, spores, or tissue, extracting proteins from cells, and conducting scientific culture experiments of viruses and vaccines.
    ◆Accelerates the reaction rate of chemical, physical, and other processes, and speeds up liquid dehydration.
    ◆Used for scientific research analysis of crude oil dilution, oil-water emulsification, accelerating decrystallization, glass homogenization, and more.
    ◆Disperses rare earths, various inorganic minerals, and prepares homogenized mixtures of latex particles close to nanometer scale.
    ◆Used for quickly and powerfully cleaning fluids from mold micropores and blind holes with high precision.


    Experimental Objectives
    1. Understand the basic principles of ultrasonic cell disruption.
    2. Master the basic techniques of ultrasonic cell disruption.


    Experimental Principle
    When strong sound waves act on a solution, the phenomenon of bubble generation, growth, and rupture is related to cavitation. The shock waves and shear forces caused by cavitation cause cell lysis.


    Materials and Reagents
    10 mL bacteria, beaker, ice shavings, 75% alcohol cotton ball.


    Technical Parameters
    Model: DH4S-1000
    Frequency: 20-25KHz automatic tracking
    Power: 1000W
    Random amplitude rod: Φ6*4 pcs
    Optional amplitude rod: Φ3*4 pcs
    Breaking capacity: 10-150ml*4 samples
    Temperature alarm range: 0-100℃
    Protection function: Over-temperature, Over-power, Over-time
    Duty ratio: 1-99%
    Power supply: 220/110V 50Hz/60Hz
    Power supply box size: 400×280×220mm
    Net weight: 12.1kg
    Main unit + transducer weight: 16kg
    Outer packaging size: 534×295×435mm


    Probe Model Selection
    Model Cell Disruption Capacity
    Φ2mm 150ul-5ml
    Φ3mm 200ul-10ml
    Φ6mm 10ml-150ml


    Single Page - Color Page
    Name: Author: Action:
    Multi-Element Probes Ultrasonic Processor DH4S-1000 ultrasonic homogenizer Download


    Related products
    Name: Model:
    Multi Probe ultrasonic homogenizer DH16S-3000
    Multiple Probe Sonicator DH8S-2000
    Multi-Element Probes Ultrasonic Processor DH4S-1000
    Product List
    DH4S-1000 Unit
    Host Machine Unit
    Vibration System (Transducer Assembly) Set
    Special Wrench (used for disassembling the amplitu Set
    Fuses piece
    Power cord piece
    User manual copy
    Warranty card copy
    Certificate of qualification copy
    Description
    1
    1
    1
    8A, 5A each 2
    1
    1
    1
    1
