    • SONICS ultrasonic extractor
      •

    • VC505
      •

    • Power 500W, standard amplitude probe processing capacity 50ml to 250ml.
      •











    • VC505
      •

    • SONICS ultrasonic extractor
      •

    • Power 500W, standard amplitude probe processing capacity 50ml to 250ml.
      •

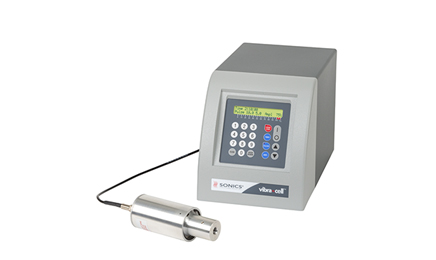

                        SONICS ultrasonic extractor VC505 can safely process various organic and inorganic materials from 250 microliters to 1 liter*. Typical applications include nanotechnology (production of nanoparticle materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP analysis, emulsification, disaggregation, and dispersion, as well as applications in the field of ultrasonic liquid chemical processing.




















						Product Introduction





						SONICS ultrasonic extractor VC505 can safely process various organic and inorganic materials from 250 microliters to 1 liter*. Typical applications include nanotechnology (production of nanoparticle materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP analysis, emulsification, disaggregation, and dispersion, as well as applications in the field of ultrasonic liquid chemical processing.





















							Product Features





							◆Energy monitor

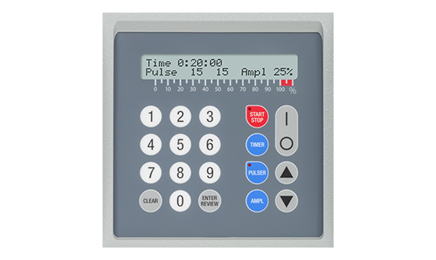

							◆Digital meter





							◆Based on microprocessor and programmable technology, digital display of power, including processing time, remaining processing time, pulse excitation time and frequency, actual power, amplitude, etc.





							◆10-hour process timer





							◆Pulse excitation function, independent switch, pulse excitation time adjustable from 1 second to 59 seconds





							◆Variable power output control





							◆Sealed frequency converter, isolating water vapor, dust and corrosive gases





















								Experimental Objectives





								1. Understand the basic principles of ultrasonic cell disruption.





								2. Master the basic techniques of ultrasonic cell disruption.





















									Principle of Experiment





									When strong sound waves act on a solution, the cavitation phenomenon of bubble generation, growth, and rupture is related. The shock waves and shear forces caused by cavitation phenomenon cause cell lysis.





									Materials and Reagents

									10ml bacteria, beaker, crushed ice, 75% alcohol cotton ball.





















										Probe Selection







										Probe Model and Size

										Cell Disruption Capacity





										2mm

										150ul－5ml





										3mm

										250ul－10ml





										6mm

										10ml－50ml





										13mm

										50ml－250ml





















											Technical Parameters







											Model:

											VC 505





											Frequency:

											20KHz





											Power:

											500W





											Sealed frequency converter model:

											CV334 (PZT piezoelectric frequency converter made of lead zirconate titanate)





											Standard amplitude bar:

											Φ13mm





											Standard amplitude bar length:

											113mm





											Overall size of amplitude bar:

											235 x 190 x 340 mm





											Amplitude bar material:

											Titanium alloy Ti-6Al-4V





											Standard amplitude bar processing capacity:

											50ml to 250ml





											Optional amplitude bar:

											Φ6mm, Φ10mm





											Amplitude bar weight:

											900g





											Amplitude bar cable length:

											1.8m





											Crushing capacity:

											50ml to 250ml





											Duty cycle:

											1-99%





											Power regulation range:

											Continuously adjustable (20-500w)





											Gap time:

											0.1-99.9s





											Temperature protection setting:

											None





											Power amplitude display:

											Yes





											Operating frequency range:

											Energy monitor digital wattmeter, automatic tuning, automatic amplitude compensation





											Operating time:

											Microprocessor-based programmable 10-hour timer, 1-59 seconds independent/pulse-off





											Ultrasonic time:

											From 1 second to 10 hours





											Operating mode:

											Gap/Continuous





											Power supply:

											220/110V 50Hz/60Hz or 117V, 50/60Hz unless otherwise specified





											Net weight:

											6.8kg





											Weight of host + transducer:

											9.6g



























	Product List












                	        VC505
                            Unit





                	            Host Machine
                                Unit





                	            Toolbox
                                set





                	            Power cord
                                piece





                	            Soundproof box
                                set





                	            Special Crushing Cup
                                Piece





                	            User manual
                                copy






















    Description


    1
    1
    1
    Optional
    Optional
    1
