    • SONICS Handheld Ultrasonic Cell Disruptor
      •

    • VCX130
      •

    • Power of 130W, standard amplitude rod processing capacity from 10ml to 50ml.
      •











    • VCX130
      •

    • SONICS Handheld Ultrasonic Cell Disruptor
      •

    • Power of 130W, standard amplitude rod processing capacity from 10ml to 50ml.
      •

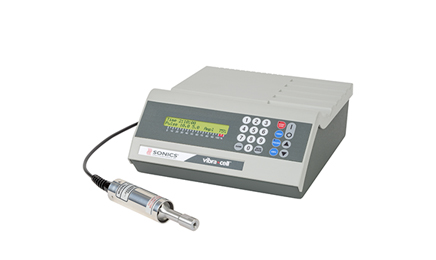

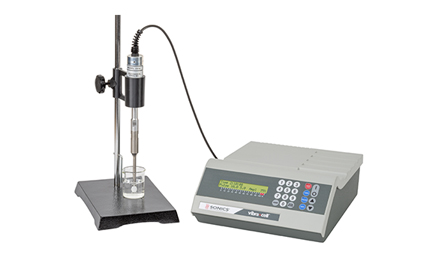

                        SONICS handheld ultrasonic cell disruptor VCX130: a 130-watt ultrasonic liquid processor with a timer and a pulsar for safe processing of a wide range of organic and inorganic materials from 150 μL to 150 mL for small-batch applications. Typical applications include biotech and pharmaceutical processing, including mixing, dispersing, and sample preparation use.




















						Product Introduction





						SONICS Handheld Ultrasonic Cell Disruptor VCX130: a 130-watt ultrasonic liquid processor with a timer and a pulsar for safe processing of a wide range of organic and inorganic materials from 150 µL to 150 mL for small-batch applications. Typical applications include biotech and pharmaceutical processing, including mixing, dispersing, and sample preparation use.





















							Product Features

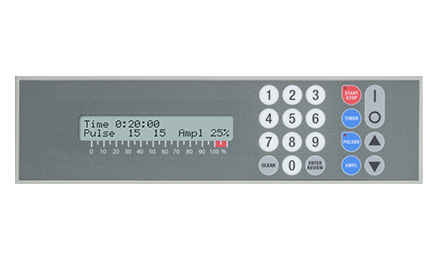

							◆Energy monitor





							◆1-59 second independent on/off pulse generator





							◆Digital voltmeter





							◆Elapsed time indicator





							◆10-hour timer





							◆Variable power output control





















								Experimental Objectives





								1. Understand the basic principles of ultrasonic cell disruption.





								2. Master the basic techniques of ultrasonic cell disruption.





















									Principle of Experiment





									When strong sound waves act on a solution, the cavitation phenomenon of bubble generation, growth, and rupture is related. The shock waves and shear forces caused by cavitation phenomenon cause cell lysis.





									Materials and Reagents

									10ml bacteria, beaker, crushed ice, 75% alcohol cotton ball.





















										Probe Selection







										Probe Model and Size

										Cell Disruption Capacity





										2mm

										150ul－5ml





										3mm

										250ul－10ml





										6mm

										10ml－50ml





















											Technical Parameters







											Model:

											VCX 130





											Frequency:

											20KHz





											Power:

											130W





											Timing device:

											1s-10hr





											Pulse excitation device:

											Off: Manual On: 1-59 seconds adjustable





											Inverter model:

											CV18





											Standard amplitude bar:

											Φ6mm





											Standard amplitude bar length:

											113mm





											Overall size of amplitude bar:

											115 x 250 x 320 mm





											Amplitude bar material:

											Titanium alloy Ti-6Al-4V





											Standard amplitude bar processing capacity:

											10ml to 50ml





											Optional amplitude bar:

											Φ2mm, Φ6mm, Φ13mm





											Amplitude bar weight:

											340g





											Amplitude bar cable length:

											1.5m





											Duty cycle:

											1-99%





											Power adjustment range:

											Continuously adjustable (20-130w)





											Temperature protection setting:

											/





											Power amplitude display:

											Yes





											Working frequency range:

											Energy monitor digital wattmeter automatic tuning and automatic amplitude compensation





											Working mode:

											Pulse/continuous





											Power supply:

											220/110V 50Hz/60Hz or unless otherwise specified, the power requirement is sent at 117V, 50/60Hz





											Net weight:

											3.2kg





											Main unit + transducer weight:

											3340g



























	Product List












                	        VCX130
                            Unit





                	            Host Machine
                                Unit





                	            Toolbox
                                set





                	            Power cord
                                piece





                	            Soundproof box
                                set





                	            Special Crushing Cup
                                Piece





                	            User manual
                                copy






















    Description


    1
    1
    1
    Optional
    Optional
    1
